JETFORGE

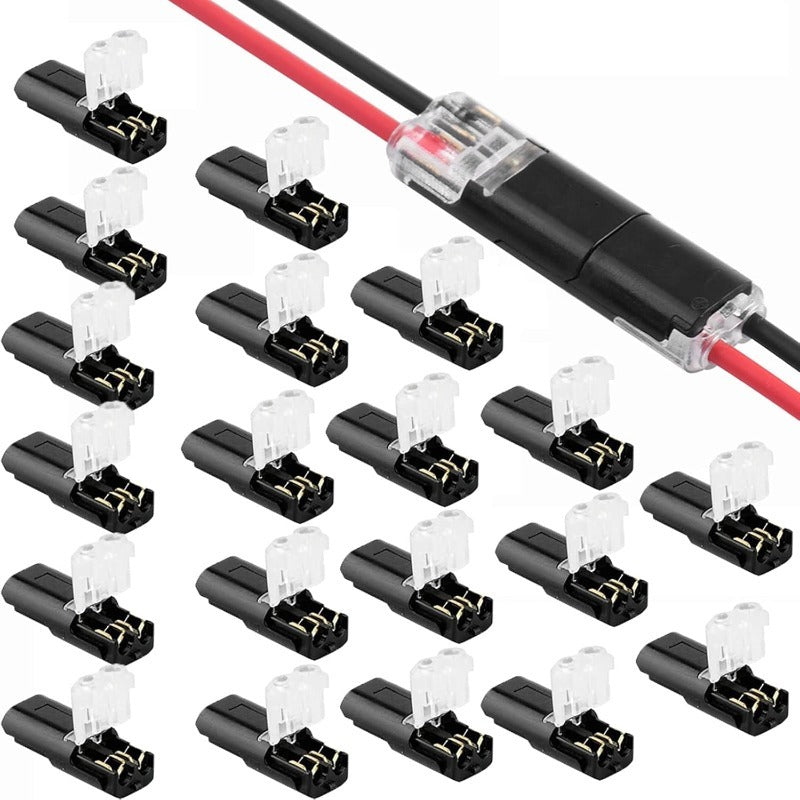

2-Pin Solderless Wire Connector – Compact Plug for LED Strips & 18–22 AWG Cables
Product details
Details & Specifications
2-Pin Solderless Wire Connectors – Compatible with LED Strips & 18–22 AWG Solid/Stranded Wires
High-Quality, Flame-Retardant Construction
Constructed with durable PA66 nylon housing, these connectors feature internal copper contacts that resist flames and corrosion, ensuring dependable performance in a wide range of environments.
Tool-Free Installation with Zero Wire Stripping
Lift the lever, slide in your 18–22 AWG wire (solid or stranded), then press to lock—no stripping, soldering, or special tools needed. Secure your connections in seconds with ease.
Slim Design for Space-Saving Installations
Measuring just 38mm × 9.6mm × 6.2mm, this compact connector is significantly smaller than standard terminal blocks—ideal for tight spaces and clean, organized wiring.
Designed for Low-Voltage DIY Electronics
Perfect for 12V/24V DC projects like LED strips, home lighting systems, audio devices, model setups, motor circuits, and more—great for both hobbyists and pros.
Customizable Slot for Thicker Wire Fit
If your wire’s outer jacket is slightly large, simply trim the plastic ring slightly to widen the slot—ensuring a tight and reliable connection.
Easy 4-Step Installation Guide
1) Insert wire into the terminal
2) Squeeze down the transparent cover with pliers
3) Connect male and female terminals
4) Snap together for a vibration-proof, secure hold
Product Specifications
| Product Type | 2-Pin Lever-Action Wire Connector (Plug Style) |
| Supported Wire | 18–22 AWG (0.34–0.75mm²), Solid or Stranded |
| Voltage Rating | Up to 300V |
| Current Rating | Maximum 10A |
| Dimensions | 38 × 9.6 × 6.2 mm (each unit) |
| Material | PA66 Nylon Shell + Copper Core |
| Color | Black with Transparent Cover |
| Package Includes | 20 × 2-Pin Wire Connectors |
FAQ
Q1 | Are these compatible with LED strip wiring?
Absolutely. They work seamlessly with 2-pin 18–22 AWG wires commonly used for LED strip lights—perfect for quick extensions or power connections.
Q2 | Do I have to strip the wires first?
No need to strip. Just insert the wire and press to connect. For best results, make sure the wire fits firmly into the contact slot.
Q3 | Can these be reused?
Yes. These connectors are reusable and can be reopened multiple times, making them ideal for temporary wiring or prototypes.
Q4 | What should I do if my wire is too thick?
You can slightly trim the retaining ring with scissors, as shown in the image, to accommodate thicker wire insulation.
